AC110V Hydraulic Power Units

AC 110V Single Acting Hydraulic Power Unit With Plastic Oil Tank for Car Lift

This Hydraulic Power Unit is to operate single acting cylinders,
AC110V Hydraulic power unit.
1.5kw  AC110V  electric motor
2.5cc/r gear pump.
12 Litre plastic tank with drain plug.
Hydraulic Power pack complete with suction filter, return oil pipe and air breather.
Mounting:  Vertical Mounting.
Max pressure: 210 bar.
Relief valve: RV2-08.  set pressure 160 bar, but adjustable from 50-200 bar as standard for each power pack..
Flow Rate: 6 l/min.
Relief valve and check valve for all standard power unit
Oil Port size :3/8"BSP


Basic Information:

Specification:

Commercial Term:

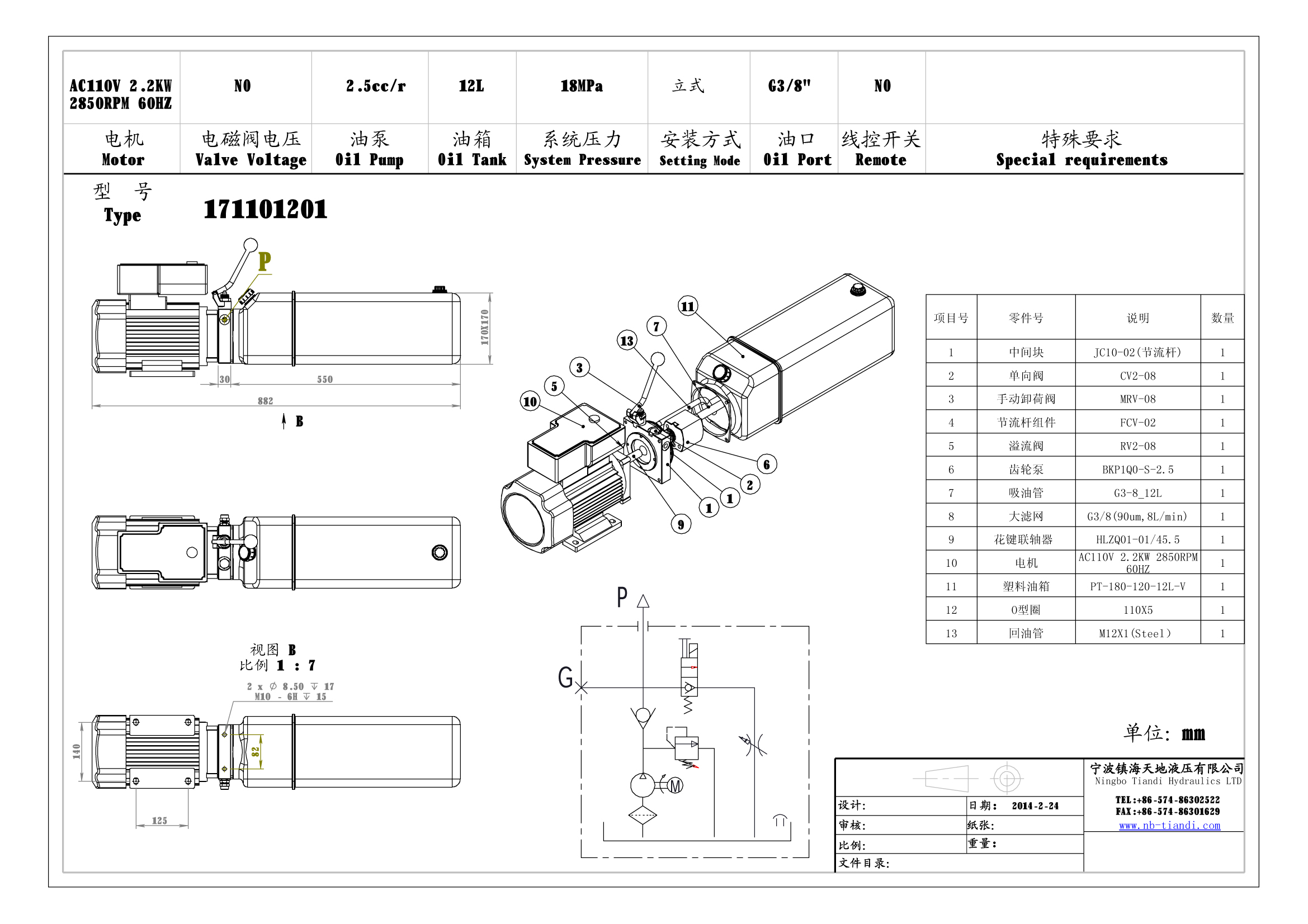

AC 110V Single Acting Hydraulic Power Unit  Drawing

Competitive Advantage:

1. TIANDI hydraulic is one of earliest factories of hydraulic packs and units. We have a professional team for raw material purchasing to control the cost. Our works are all well trained and effective. All above these makes our price very competitive.

2. Our export department staff is very professional and effective. They are good at export processing, any problems and questions about products or processing, or paper woks, you can contact and count on them.
